SS-534 Taylor-Dunn
Chassis: Battery: |
Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In |
Chassis: Brakes: |
Rear: mechanical drum Front: N/A Parking: Foot |
Chassis: Frame Construction: |
Steel unitized body, heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series |
Chassis: Steering: |
Manual, Tiller, Front Fork |
Chassis: Suspension: |
Rear: Coil springs Front: Shock absorber |
Chassis: Tires: |
Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic |
Dimensions: Deck: |
Width: 27″ (68.6cm) Length: 17″ (43.2cm) Height: 24″ (60.96cm) |
Dimensions: Height: |
Less Cab: 41.5″ (105 cm) With Cab: N/A |
Dimensions: Hitch Height: |
12″ (30.5cm) |
Dimensions: Length: |
76.5″ (194 cm) |
Dimensions: Outside Turning Radius: |
75″ (190.5cm) |
Dimensions: Weight: |
701 lbs. (309 kg.) |
Dimensions: Wheel Base: |
53.5″ (135.9cm) |
Dimensions: Width: |
30″ (76 cm) |
Interior: Instrumentation: |
Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
500 lbs. (227 kg |
Performance: Passengers: |
1 |
Performance: Range: |
20 miles (32 km) |
Performance: Speed: |
10 mph (16.1 km/h) |
Performance: Tow Capacity: |
4,250 lbs. (1,928 kg) |
Details

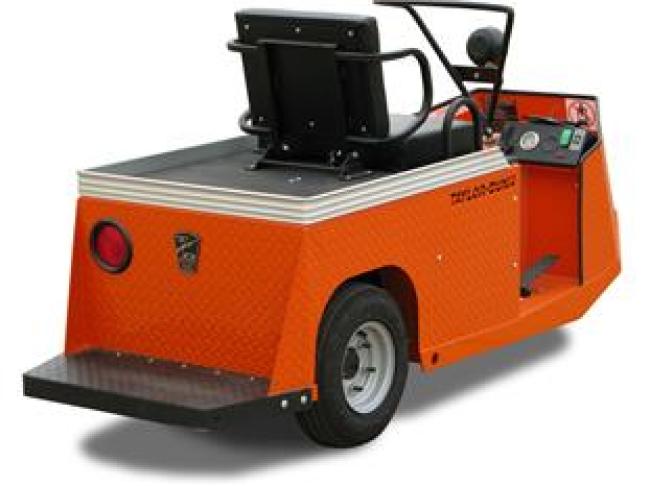

The versatile design of the Taylor Dunn SS-534 electric cart allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 500 lbs. of load on the job site.
This three wheel cart comes with a short turning radius design, allowing the SS-534 to maneuver dependably around warehouses, industrial complexes, resorts, hotels, shopping malls, hospitals and other commercial complexes.
The Taylor Dunn SS-534’s all-welded steel unitized body and frame is built to last for years of use. The modularized control system design provides ease of maintenance on all electrical systems. Tiller loop steering, 10 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.
