SC-175 Taylor-Dunn
Chassis: Battery: |
Type: Four 217 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In |
Chassis: Brakes: |
Rear: Mechanical brake band/drum at differential Front: N/A Parking: Auto |
Chassis: Frame Construction: |
Steel unitized body, heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series |
Chassis: Steering: |
Manual, Chain Linkage, Front Fork |
Chassis: Suspension: |
Rear: Solid Front: Solid |
Chassis: Tires: |
Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Dual, Pneumatic |
Dimensions: Deck: |
Width: 29″ (73.7cm) Length: 43″ (102.2cm) Height: 23″ (58.4cm) |
Dimensions: Height: |
Less Cab: 43″ (109 cm) With Cab: N/A |
Dimensions: Hitch Height: |
12″ (30.5cm) |
Dimensions: Length: |
82″ (208 cm) |
Dimensions: Outside Turning Radius: |
67″ (170.0cm) |
Dimensions: Weight: |
788 LBS. (357 kG) |
Dimensions: Wheel Base: |
48″ (121.9cm) |
Dimensions: Width: |
29.5″ (74 cm) |
Interior: Instrumentation: |
Battery status indicator, forward/reverse selector, key switch, electric horn |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
1,200 lbs. (545.5 kg) |
Performance: Passengers: |
1 |
Performance: Range: |
20 miles (32 km) |
Performance: Speed: |
8 mph (12.9 km/h) |
Performance: Tow Capacity: |
5,000 lbs. (2,273 kg) |
Details

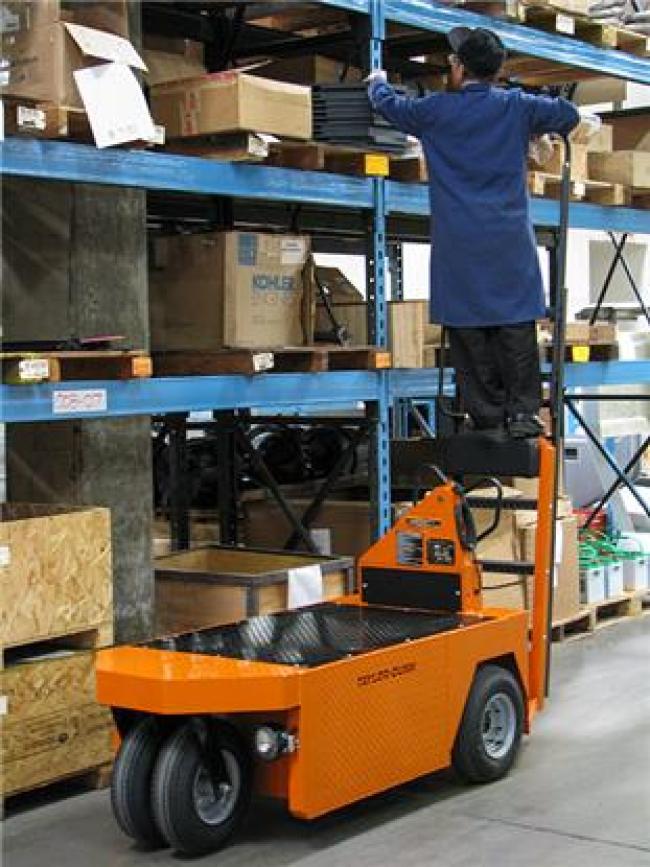

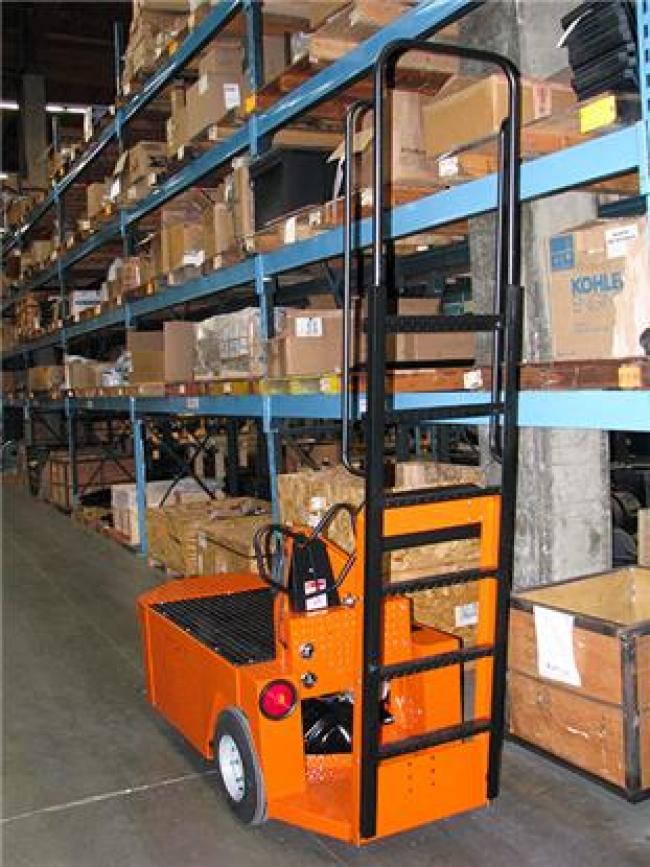

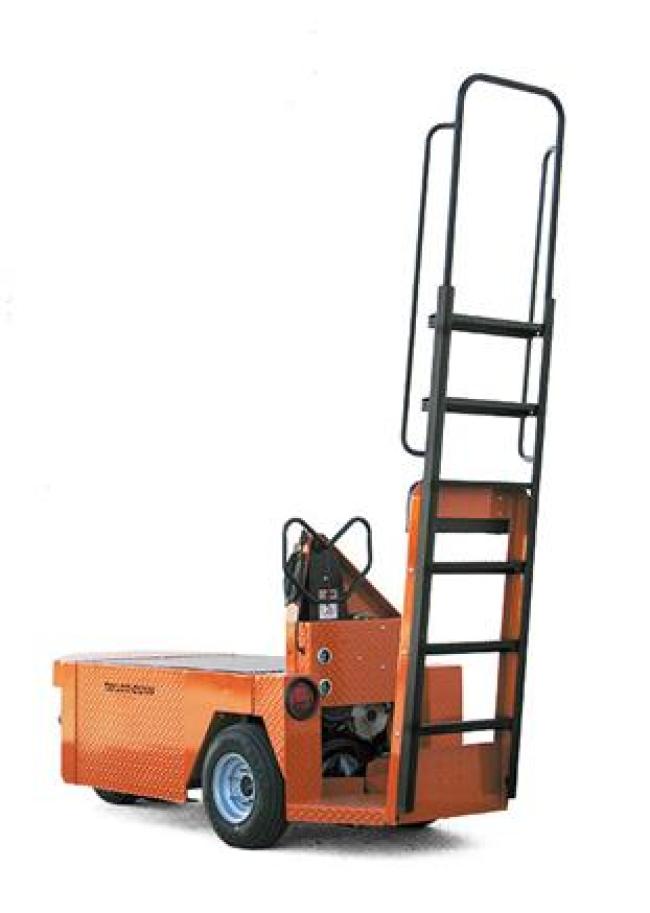

The SC-175 Stockchaser travels at speeds up to 8 mph and can carry up to 1,200 lbs. It’s equipped with a step ladder, allowing operators to pick materials from high stock locations.
- Equipment Type
- Industrial Carts / Stockchasers, Parts Pickers & Expediters
