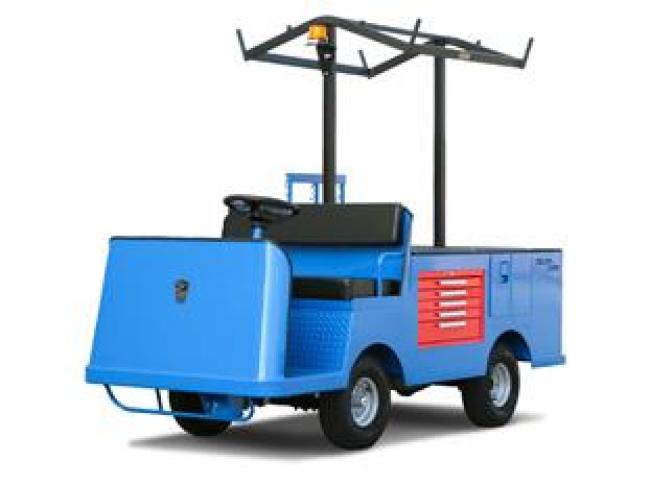

MX-1600 Taylor-Dunn
Chassis: Battery: |
Type: Six 210 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In |
Chassis: Brakes: |
Rear: Two wheel mechanical drums Front: N/A Parking: Hand Operated |
Chassis: Frame Construction: |
Steel unitized body with heavy duty 14 gauge smooth plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Solid State Speed Control |
Chassis: Steering: |
Manual, Automotive Style |
Chassis: Suspension: |
Rear: Leaf springs Front: Leaf springs |
Chassis: Tires: |
Rear: 5.70 x 8 pneumatic, Load Range C Front: 5.70 x 8 Load Range C, Pneumatic |
Dimensions: Deck: |
Width: 44″ (111.8cm) Length: 63″ (160.0cm) Height: 36″ (91.4cm) |
Dimensions: Height: |
Less Cab: 47.5″ (121 cm) With Cab: 71″ (180 cm) |
Dimensions: Hitch Height: |
10.4″ (26.3cm) |
Dimensions: Length: |
107.95″ (274 cm) |
Dimensions: Outside Turning Radius: |
110″ (279.4cm) |
Dimensions: Weight: |
1420 lbs (644 kg) |
Dimensions: Wheel Base: |
50.5″ (128.3cm) |
Dimensions: Width: |
44″ (112 cm) |
Interior: Instrumentation: |
Battery status indicator, forward/reverse selector, key switch, reverse buzzer and electric horn |
Interior: Seats: |
Driver: Seat Cushion, full back rest, black vinyl, electrical seat interlock switch Passenger: Seat Cushion, Back Rest, Black Vinyl |
Performance: Load Capacity: |
1,000 lbs. (454 Kg) |
Performance: Passengers: |
2 |
Performance: Range: |
20 miles (32 km) |
Performance: Speed: |
12 mph (19.3 km/h) |
Performance: Tow Capacity: |
7,500 lbs. (3,400 kg) |
Details
The MX-1600 improves repair and maintenance productivity by reducing travel time and provides a mobile workshop at the service site.
Equipped with 36-volt battery system, the MX-1600 can travel up to 12 mph. With an all welded steel unitized body and frame this traveling repair shop is built to service for many years.
