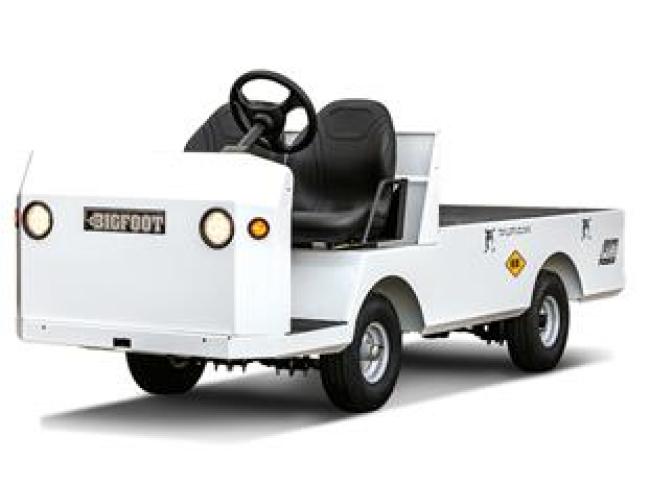

Bigfoot® EE 48V Taylor-Dunn
Chassis: Battery: |
Type: 210 Amp-hour, 6 volt lead acid System Voltage: 48 Charger: Built-in, 115 VAC/60 Hz, 1 kW w/ interlock |
Chassis: Brakes: |
Rear: Hydraulic Disc Front: Hydraulic disc Parking: Automatic |
Chassis: Frame Construction: |
12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel |
Chassis: Powertrain: |
Type: Electric Power: 115 VAC, 60 Hz Transmission: Helical Gear, Oil Bath Transaxle, GT Automotive Differential Drive: GT Drive, Automotive Differential Controller: 330 amp, Solid State Self Diagnostic AC speed controller, integrated thermal protection and safety monitoring features |
Chassis: Steering: |
Rack and Pinion |
Chassis: Suspension: |
Rear: Multi-leaf Springs Front: Multi-leaf springs |
Chassis: Tires: |
Rear: 5.70 x 8 Load Range C, Pneumatic Front: 5.70 x 8 Load Range C, Pneumatic |
Dimensions: Deck: |
Width: 44 in (112 cm) Length: 77 in (195 cm) Height: 27.5 in (70 cm) |
Dimensions: Height: |
Less Cab: 51.5 in (131 cm) With Cab: 73 in (185 cm) |
Dimensions: Hitch Height: |
12.5 in (32 cm) |
Dimensions: Length: |
130.5 in (332 cm) |
Dimensions: Outside Turning Radius: |
137 in (348 cm) |
Dimensions: Weight: |
1,790 lb (812 kg) |
Dimensions: Wheel Base: |
62 in (158 cm) |
Dimensions: Width: |
44 in (112 cm) |
Interior: Instrumentation: |
Smart View Display ( battey status indicator, hour meter, fault code display), reverse buzzer, key switch, light switch, direction control switch, power cut-off switch, 12V DC/DC converter, dual USB port, electric horn |
Interior: Seats: |
Driver: Black adjustable bucket seat, driver’s seat electrical interlock Passenger: Black Adjustable Bucket Seat |
Performance: Load Capacity: |
3,000 lb (1360 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
30 Miles (48 km) |
Performance: Speed: |
12 mph (19 km/h) |
Performance: Tow Capacity: |
7,500 lb (3400 kg) |
Details
Taylor Dunn bigfoot electric burden carriers are top of the line industrial carts.
The Bigfoot EE-48V features include a secured battery compartment with a latch and lockable door, and electrical components (controller, contactor, fuses, and DC/DC converter) all in a sealed enclosure.
