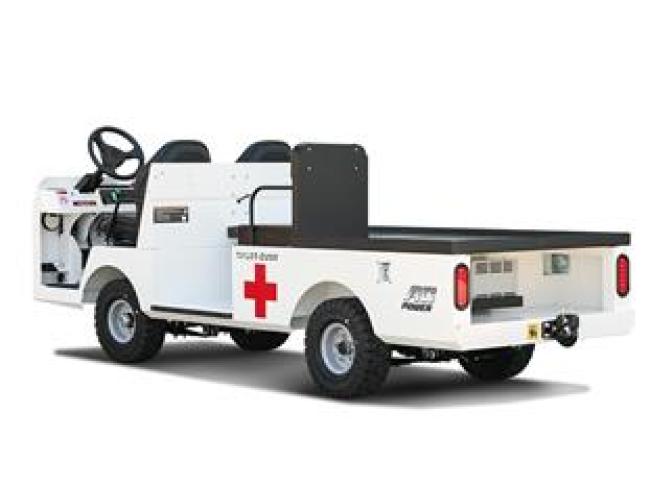

Bigfoot® Ambulance Cart 36V Taylor-Dunn
Chassis: Battery: |
Type: 210 Amp-hour, 6 Volt lead acid System Voltage: 36 Charger: Built-in, 115 VAC/60Hz, 1 kW w/ interlock |
Chassis: Brakes: |
Rear: Hydraulic Disc Front: Hydraulic disc Parking: Hand |
Chassis: Frame Construction: |
12 Gauge, Smooth Skin, Unitized, Fully Welded, Steel |
Chassis: Powertrain: |
Type: Electric Power: 115 VAC, 60 Hz Transmission: Drive: GT Drive, Automotive Differential Controller: Solid State Self Diagnostic AC Speed Controller |
Chassis: Steering: |
Rack and Pinion |
Chassis: Suspension: |
Rear: Multi-leaf Springs Front: Multi-leaf springs |
Chassis: Tires: |
Rear: 5.70 x 8 Load Range C, Pneumatic Front: 5.70 x 8 Load Range C, Pneumatic |
Dimensions: Deck: |
Width: Length: Height: 29.1 in (74 cm) |
Dimensions: Height: |
Less Cab: 51.5 in (131 cm) With Cab: 73 in (185 cm) |
Dimensions: Hitch Height: |
12.5 in (32 cm) |
Dimensions: Length: |
140.5 in (357 cm) |
Dimensions: Weight: |
2,100 lb (952 kg) |
Dimensions: Wheel Base: |
72 in (183 cm) |
Dimensions: Width: |
44 in (112 cm) |
Interior: Instrumentation: |
Smart View Display ( battey status indicator, hour meter, fault code display), reverse buzzer,F-N-R switch, key switch, light switch, high/low speed switch, emergency power cut-off switch, DC/DC converter, dual USB port, electric horn |
Interior: Seats: |

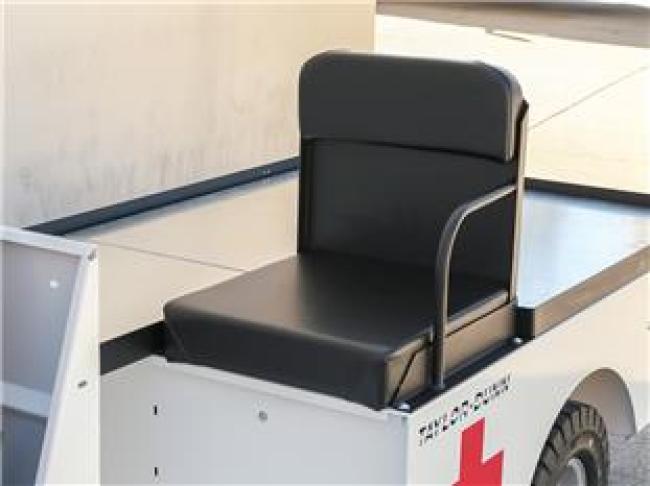

Driver: Black adjustable bucket seat, electrical interlock Passenger: Black Adjustable Bucket Seat |
Performance: Load Capacity: |
2,000 lb (907 kg) |
Performance: Passengers: |
4 |
Performance: Range: |
30 |
Performance: Speed: |
12 mph (19 km/h) |
Performance: Tow Capacity: |
5,000 lb (2268 kg) |
Details
This 36 volt ambulance cart is equipped with a 7.5 hp AC motor, our own GT Drive, built-in charger with driver seat safety interlock switch, and rear hydraulic brakes.
