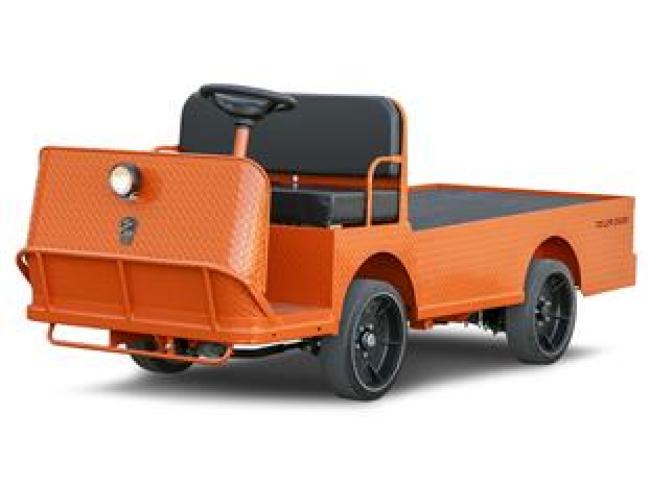

B-254 36V GT Taylor-Dunn
Chassis: Battery: |
Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In |
Chassis: Brakes: |
Rear: Hydraulic discs Front: Hydraulic disc Parking: Hand |
Chassis: Frame Construction: |
Steel unitized body with heavy duty 16 gauge diamond plate |
Chassis: Powertrain: |
Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM |
Chassis: Steering: |
Manual, Re-circulating Ball |
Chassis: Suspension: |
Rear: Leaf springs, overload springs, dual rear shocks Front: Leaf springs |
Chassis: Tires: |
Rear: 18 X 5 X 14 Smooth Solid Cushion Front: 18 X 5 X 14 Smooth Solid Cushion |
Dimensions: Deck: |
Width: 41.25″ Length: 75.25″ Height: 25″ (63.5cm) |
Dimensions: Height: |
Less Cab: 45″ (114 cm) With Cab: 69″ (172 cm) |
Dimensions: Hitch Height: |
12.5″ (31.8cm) |
Dimensions: Length: |
121″ (307 cm) |
Dimensions: Outside Turning Radius: |
138″ (350.4cm) |
Dimensions: Weight: |
1,900 lbs (863 kg.) |
Dimensions: Wheel Base: |
55″ (139.8cm) |
Dimensions: Width: |
45″ (114 cm) |
Interior: Instrumentation: |
Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn, DC/DC Converter |
Interior: Seats: |
Driver: Passenger: |
Performance: Load Capacity: |
5,000 lbs. (2,277 kg) |
Performance: Passengers: |
2 |
Performance: Range: |
24 miles (38 km) |
Performance: Speed: |
8 mph (12.9 km/h) |
Performance: Tow Capacity: |
17,500 lbs. (7,955 kg) |
Details
The B-254’s unique modular vehicle design allows the B-254 to be configured to provide precise solutions to your needs. The B-254 series, equipped with GT electric drive train, provides years of reliability with low operating costs.
- Equipment Type
- Industrial Carts / Burden Carriers, Industrial Vehicles, Trucks & Trailers
